Leak Detection for Data Centers: Protecting Performance and Uptime

Data centers are becoming larger, denser and more powerful. The rapid growth of cloud computing, artificial intelligence and high-performance computing is increasing the amount of heat generated inside server environments. As a result, traditional air cooling is reaching its limits in many applications. To manage higher rack densities and improve energy efficiency, data center operators and technology suppliers are increasingly turning to liquid cooling.

Liquid cooling offers clear advantages. It removes heat more efficiently than air, supports compact high-performance systems and can help reduce the overall energy demand of data center cooling. However, it also introduces a critical challenge: wherever liquid is used close to sensitive electronics and parts, leak tightness becomes essential.

Even small leaks can have serious consequences. Escaping coolant may damage components, interrupt operation and cause costly downtime. In data centers, where reliability and availability are key performance indicators, leak detection is therefore becoming an important part of quality assurance.

Liquid cooling increases the need for reliable leak testing

Modern data center cooling systems include many components that must remain leak-tight throughout their service life. These include:


Each connection, seal or joining point can become a potential leak path.

Leak detection can be relevant at different levels of the cooling infrastructure. At chip level, cold plates that contain small cooling channels are located very close to sensitive electronics. Due to the proximity to the main electronics, these components often require particularly reliable and repeatable testing. At rack level, Coolant Distribution Units (CDU), manifolds and modular assemblies must be tested before they are installed. At facility level, larger systems such as heat exchangers, piping networks and pumps must be checked before the cooling circuit is filled and commissioned.

This shows that leak detection is not limited to one single production step. It can support quality assurance during component production, subassembly testing and final system validation.

Why conventional pressure testing may not be enough

Simple pressure decay or air leak testing can be suitable for some applications. These methods are often fast and cost-effective. However, they may not be sensitive enough for components with very low permissible leakage rates or for parts installed close to critical electronics.

For more demanding applications, tracer gas leak detection offers higher sensitivity and more reliable results. Helium and hydrogen are commonly used as tracer gases because they can be detected at very low concentrations.

Depending on the following aspects, different test methods can be applied:

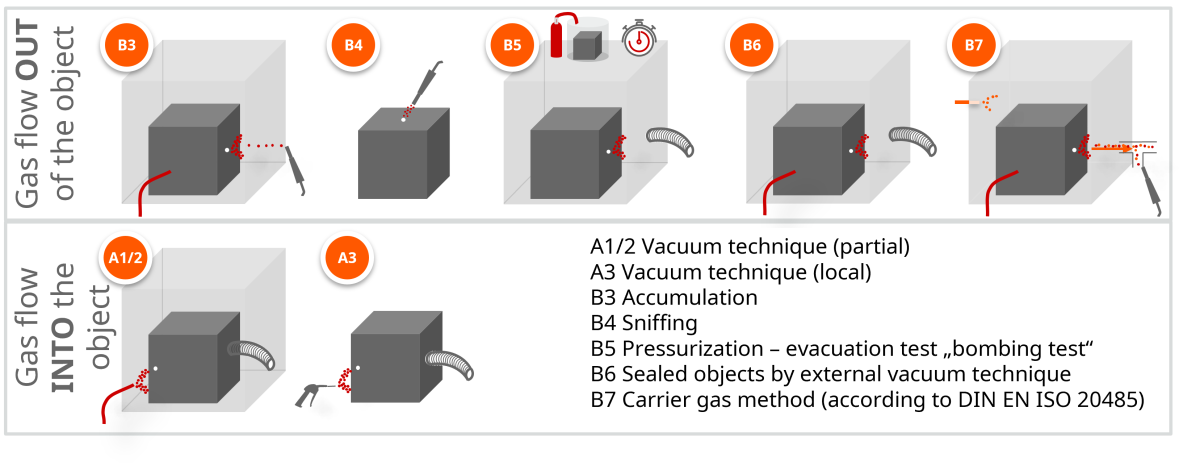

The schematic overview shows tracer gas leak detection methods according to DIN EN 1779. In this article, the focus is placed on the methods most relevant for data center cooling applications: vacuum testing, accumulation and sniffing.

In vacuum leak testing, the test object is placed in a chamber and filled with tracer gas. The leak detector measures whether gas escapes into the evacuated chamber. This method is especially suitable for demanding leakage rate requirements and repeatable production testing. In data center cooling, it can be used, for example, to test quick couplings with typical leak rate requirements in the range of 10^-5 to 10^-6 mbar·l/s.

In sniffing leak detection, the test object is pressurized with tracer gas and a sniffer probe is guided along potential leak points. This method is useful for locating leaks and for testing larger assemblies where a vacuum chamber may not be practical. One example is the testing of chillers, where typical leakage rate requirements can be in the range of 10^-4 to 10^-5 mbar·l/s.

Accumulation testing can be another option to test larger components under atmospheric conditions. The test object is placed inside an enclosure, filled with tracer gas and the concentration rise is monitored with a sniffer probe over a defined period of time. The increase in tracer gas concentration indicates whether a leak is present. This method is particularly interesting from a cost perspective, as it does not require additional vacuum components. For CDUs, this method provides a practical approach for detecting leaks in the range of 10^-4 to 10^-5 mbar·l/s.

Leak detection at different stages of production and operation

As liquid-cooled data center systems become more complex, leak detection is relevant at several stages of the product and system lifecycle. It is not only used during component manufacturing and subassembly testing, but also before filling and after the system has been charged. This broader view is important, because leak tightness must be ensured not just at the start of production, but throughout assembly, commissioning, and later operation.

At an early stage, leak testing helps identify defects in individual components before they are installed in larger systems. Additional testing at subassembly level provides further assurance after joining processes such as welding, brazing or sealing. Before refrigerant or coolant charging, leak testing is used to verify that the complete unit is ready for filling and operation.

However, leak testing also remains important after charging. Even if a component or system has passed earlier tests, it must still be ensured that it remains leak-tight under real operating conditions. For this reason, post-charging leak detection and service inspections are an important part of the overall quality and maintenance concept. In these phases, sniffing methods are often used to check defined connection points and detect escaping refrigerant or coolant.

This is particularly relevant in data center cooling, where the loss of coolant can reduce cooling performance, increase maintenance effort, and, in the worst case, lead to system instability or costly downtime. Leak detection should therefore be understood not as a single test step, but as a quality assurance measure that supports reliability across the entire process chain.

Depending on the stage of the process, the component size, the required leak rate and the production environment, different testing concepts may be needed. These can range from manual service checks to modular test setups or automated inline systems.

How to start with leak detection

For many manufacturers in the data center cooling environment, leak detection is still a relatively new topic. While the need for leak-tight components is clear, the best way to test them is often less obvious. Requirements can vary significantly depending on the component or system to be tested, the coolant or refrigerant used, the production process, and the required sensitivity.

A structured approach can help define the right testing concept:

1. Define the component and test conditions
The first step is to understand the component geometry, internal volume, materials, connection points and operating conditions.

2. Determine the required detection limit
The acceptable leak rate depends on the application, the medium used, and the potential consequences of leakage.

3. Select a suitable test method
Depending on the required sensitivity and component size, vacuum testing, sniffing or accumulation testing are suitable options.

4. Validate the concept before investing
Testing components under realistic conditions before selecting dedicated leak detection equipment helps reduce technical and financial risks. Feasibility studies can be used to evaluate suitable test methods, define the required detection limit and determine whether a manual, modular or automated testing concept is most appropriate for the application.
